TM 1250 SBV Winder

Type: Electric | Code: 508113
NR12Inmetro1 ano de garantia

Optional

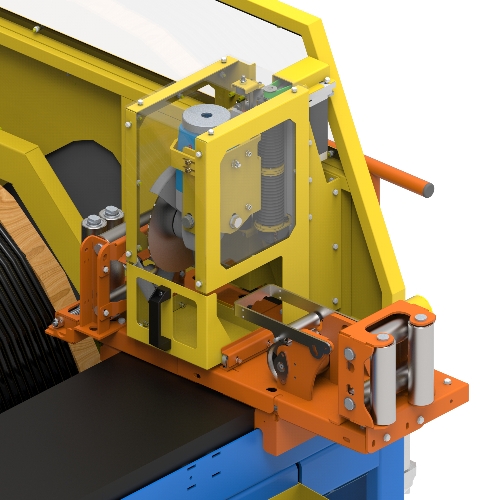

  • Cutting system (Optional)Cutting system (Optional)

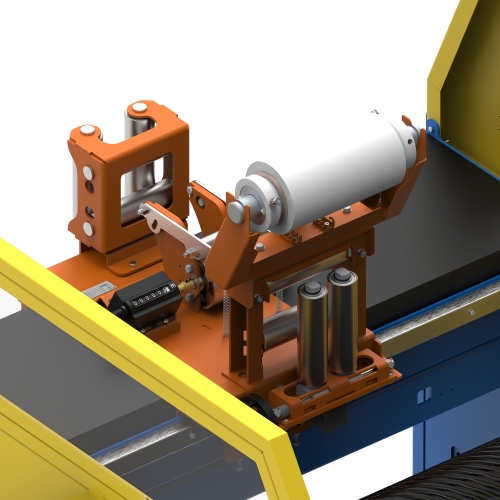

  • Strech System (Optional)Strech System (Optional)

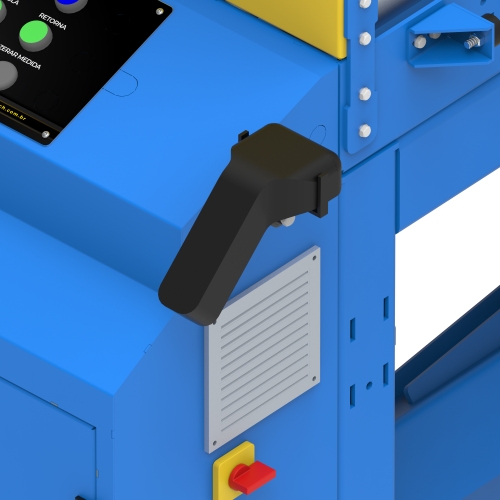

  • Barcode reader (optional)Barcode reader (optional)

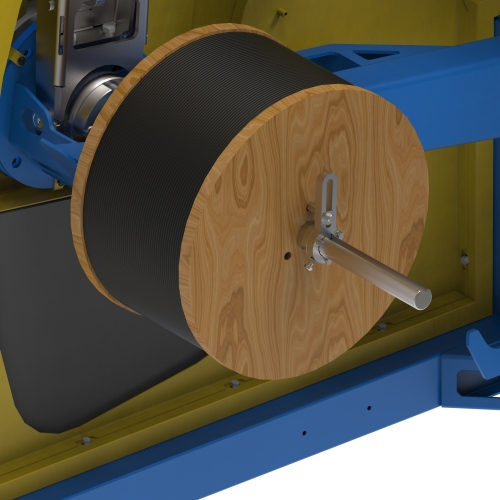

  • Spool Device (Optional)Spool Device (Optional)

Specifications

The TM 1250 SBV is more than just a machine; it is the ideal choice for companies that want to maximize productivity with precision and reliability. This winder, with its automatic spreading system, turns the splitting of wires and cables into a fast and efficient process, saving time and ensuring quality from the start. Whatever the type of cable, the TM 1250 SBV machine is compatible and ensures agile, organized and safe handling of materials on trestles, unwinders or vertical shelves.



Key Benefits:

  • Maximum efficiency : Simplifies the process and increases productivity with precise control.
  • Total Flexibility : Perfect for different types of wires and cables, in various configurations.
  • Guaranteed quality : Less manual intervention means safer, more efficient operation that complies with NR12 safety standards.



For companies that value final quality and a flawless process, the TM 1250 SBV is the perfect partner to ensure high performance and consistency at every stage of production.



•SECURITY•

Our machines are manufactured in accordance with current safety standards, such as Regulatory Standard (NR 12), which was originally published in SIT Ordinance No. 197 of 12/17/2010 and has undergone several important updates, the most recent being by MTP Ordinance No. 4,219 of December 20, 2022, published in the Official Gazette of the Union (DOU) on 12/22/2022. This standard regulates the mandatory safety measures that must be adopted in machines and equipment for the protection of workers. In order to inform and make you aware of such standards, before defining the equipment to be purchased, we recommend reading this Standard in full, available on the Ministry of Labor and Employment Portal, and paying special attention to item 12.15.2, which prohibits the manufacture, import, sale, auction, rental, transfer for any reason, exhibition and use of machines that do not comply with the provisions of the standard.



Website NR12 - WORK SAFETY:

https://www.gov.br/trabalho-e-emprego/pt-br/acesso-a-informacao/participacao-social/conselhos-e-orgaos-colegiados/comissao-tripartite-partitaria-permanente/arquivos/normas-regulamentadoras/nr-12-atualizada-2022-1.pdf



Characteristics

Features and Functionality

  • Automatic Spreading : More efficient operation with less manual interference.
  • Bearing Shaft : Ensures greater efficiency in the winding process.
  • Speed Control : Electronic system with frequency inverter for precise speed adjustment.
  • Electro-Hydraulic Lifting : Facilitates lifting of the coil.
  • Ramp Acceleration and Stop System : Controls smooth acceleration and stopping of the operation.
  • Control Panel : Powered by 24 Vdc for safety, in accordance with NR12.
  • Fixed Casters with Lever : Makes it easier to transport the equipment.
  • IHM7 Interface : Meter approved by INMETRO for greater accuracy.



Optional Accessories

  • Barcode reader: To facilitate reading of cable splitting, avoiding errors during operation.
  • Stretch Film Set : Helps with packaging rolls and reels.
  • Automatic Cutting System : Electric tool for automatic cutting.
  • Simultaneous Roll Forming Device : Special for applications in the photovoltaic segment.







  • Equipment features

    Height (mm): 1800Width (mm): 2250Length (mm): 2050Weight (kg): 970
  • Load capacity and dimensions of supported coils

    Capacity (kg): 1200Max Length (mm): 826Max Diameter (mm): 1250
  • Load capacity and dimensions of formed rolls

    Capacity (kg): 300Length (mm): 170Internal Diameter (mm): 360External Diameter (mm): 850
  • Measurement speed

    m/minutes: 80
  • Supported cable characteristics

    Minimum section area (mm²): 6Maximum section area (mm²): 500
  • Supply voltage

    Single-phase network (V): 220
  • Power

    kW: 5
