Wire and Cable Display MDK 400
Type: Manual | Code: 502502
Specifications
COMPLETE EQUIPMENT!!! "4 EM 1".
EXHIBITION + ARMAZENAMENTO + MEDIA + FOLDER.

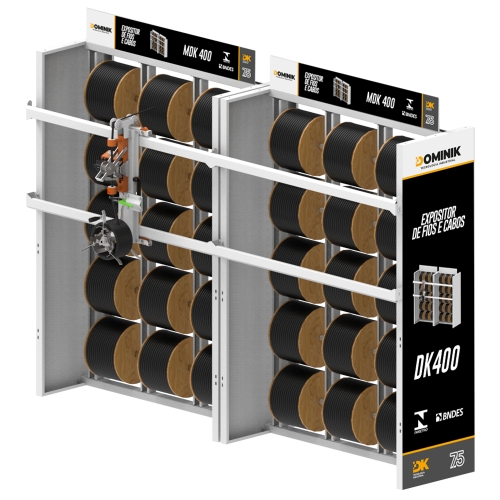

The MDK 400 rope and rope display was developed especially for measuring and making ropes from ropes previously housed in reels on the machine itself. The DK 400 rope display and meter has the capacity to carry 15 spools with a maximum unit weight of 40 kg, not being able to exceed the maximum limit of 600 kg for the total load. Your MDK 100 meter has cables with sections from 1.5 mm² to 16 mm². The structure is dismantled, facilitating transportation and handling of the equipment. The operation is completely manual, not requiring any type of electrical connection or any type of lubrication of its components. It is intended for the trade of construction materials, hardware stores, electrical materials stores, almoxarifados, telephony, data transmission among others.
Characteristics
- Device for making rolls of ropes and ropes.
- It contains 15 reels.
- Attached rope and cable cutter.
- Total load capacity of 600 kg (40 kg on each reel).
- Manual operation.
- Meter equipped with a 6 (six) alarm transmission device.
- INMETRO approved hair meter.
- Modular display, being able to use several shelves with just one meter.
Equipment features
Height (mm): 2350Width (mm): 1350Length (mm): 900Weight (kg): 75Load capacity and dimensions of the supported reels (15 reels)
Capacity (kg): 40Max Length (mm): 340Max Diameter (mm): 350Load capacity and dimensions of formed rolls
Capacidad (kg): 20Width (mm): 100Internal Diameter (mm): 165External Diameter (mm): 400Supported cable characteristics
Minimum section area (mm²): 1,5Maximum section area (mm²): 16Tolerancia de Medición
Maximum %: ± 1
