Bobinador Double SA 150 SBV
Type: Electric | Code: 508721
Optional

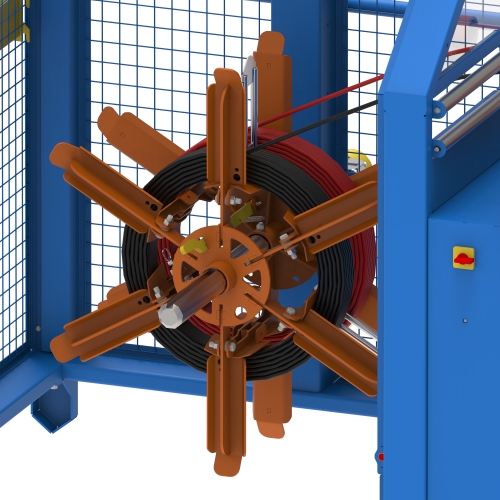

Dispositivo para formar 2 rolos

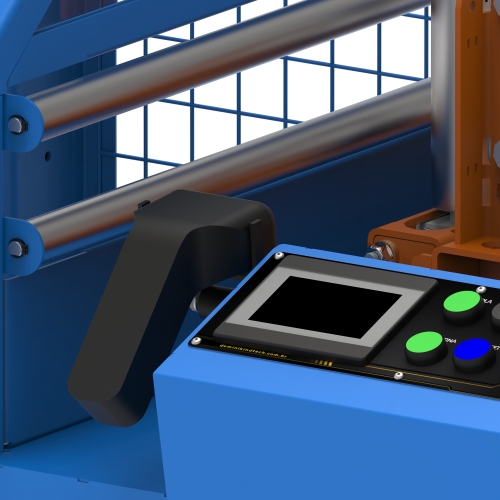

Leitor de Código de Barras
Specifications
The Double 150 SBV Winder with automatic cable spreading is the ideal choice for companies seeking productivity, precision, and innovation in wire and cable splitting. Designed with cutting-edge technology, it stands out for its automatic cable spreading, guaranteeing efficiency, quality, and increased productivity in every operation.
Developed to handle a wide range of cables, from 1.5 mm² to 500 mm², the equipment can be used to:
Form rolls and reels up to 80/45 mm in diameter (NBR 11137 standard), with a load capacity of 400 kg.
Works in conjunction with different types of unwinders (stand, reel holder, unwinding ramp, plate type, among others).
Characteristics
Supported cable capacity: from 1.5 mm² to 500 mm².
Versatile application: supports flexible cables, aluminum, multiplex or quadruplex, steel cables, wire ropes, bare copper cables. In addition, it can work with materials such as ropes, hoses and ducts, among others.
Guaranteed precision: meter approved by Inmetro, with a maximum variation of (±1%).
Productivity: average measurement speed of 80m/min.
Total control: potentiometer for real-time speed adjustment.
Intelligent automation: HMI interface with pre-programmed recipes and digital counter with stop at the desired meterage.
Safety first: fully complies with NR-12 – Occupational Safety Standard for Machinery and Equipment, with protection devices, signaling, technical documentation and preventive and corrective maintenance plan, in accordance with SIT Ordinances No. 197/2010 and MTP No. 4.219/2022. IMPORTANT: Invest safely: Only equipment that complies with NR12 guarantees the protection of your employee, prevents accidents, and safeguards your assets.
Outside of the standard, your equipment may be shut down and your investment lost.
NR12 website - WORK SAFETY: learn more.
Equipment features
Height (mm): 1400: 2200: 1600: 480: 80: 220Load capacity and dimensions of supported coils
Capacity (kg): 400Max Length (mm): 550Max Diameter (mm): 800Load capacity and dimensions of formed rolls
Capacity (kg): 200Width (mm): 170Internal Diameter (mm): 390External Diameter (mm): 850Supported cable characteristics
: 4: 50
