TM 1250 Winder
Type: Electric | Code: 509968
Optional

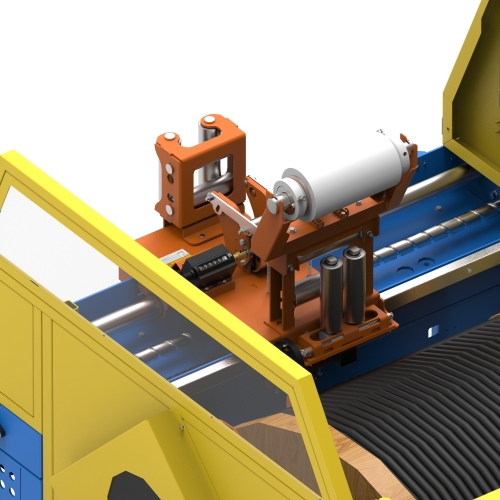

Sistema Stretch (Opcional)
Dispositivo para Carretéis (Opcional)
Specifications
The TM 1250 Reel with manual cable distribution is the ideal choice for companies looking for productivity, precision and innovation in wire and cable fractionation. Designed with cutting-edge technology, it stands out for the manual spreading of cables, ensuring efficiency and quality in each operation.
Developed to serve a wide range of cables, from 1.5 mm² to 500 mm², the equipment can be used to:
- Form rolls and coils from 65/25 to 125/70. (Norm NBR 11137)
- It works together with different types of decoilers (easel, coil holder, decoiler ramp, plate type, among others).
Characteristics
- Supported cable capacity: from 1.5 mm² to 500 mm².
- Application versatility: supports flexible cables, aluminum, multiplex or quadruplex, steel cables, wire ropes, bare copper cables. In addition, it can work with materials such as ropes, hoses and ducts, among others.
- Guaranteed precision: meter approved by Inmetro, with a maximum variation of (±1%).
- Productivity: average measurement speed of 80m/min.
- Total control: potentiometer for real-time speed adjustment.
- Operational practicality: electro-hydraulic coil lifting.
- Intelligent automation: Digital counter with stop at the desired meterage.
- Safety First: Fully complies with NR-12 – Occupational Safety Standard for Machinery and Equipment, with protective devices, signage, technical documentation, and a preventive and corrective maintenance plan, in accordance with SIT Ordinance No. 197/2010 and MTP Ordinance No. 4.219/2022.
IMPORTANT: Invest safely: Only equipment that complies with NR12 guarantees the protection of your employee, prevents accidents, and safeguards your assets.
Outside the standard, your equipment may be shut down and your investment lost.
NR12 Website - OCCUPATIONAL SAFETY: learn more.
Clique aqui
Equipment features
Height (mm): 1800Width (mm): 2200Length (mm): 2020Weight (kg): 570Load capacity and dimensions of supported coils
Capacity (kg): 1200Max Width (mm): 826Max Diameter (mm): 1250Load capacity and dimensions of formed rolls
Capacity (kg): 200Width (mm): 170Internal Diameter (mm): 360External Diameter (mm): 850Measurement speed
m/minutes: 80Supported cable characteristics
Minimum section area (mm²): 6Maximum section area (mm²): 500Supply voltage
Single-phase network (V): 220Potência
:
